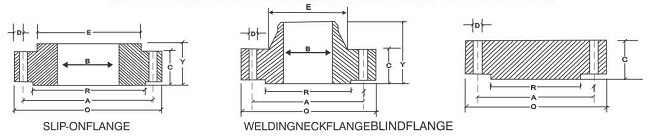

Flanges DIMENSION OF FORGED FLANGES ANSI B 16.5

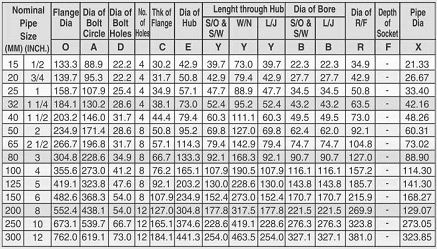

CLASS 150 LBS

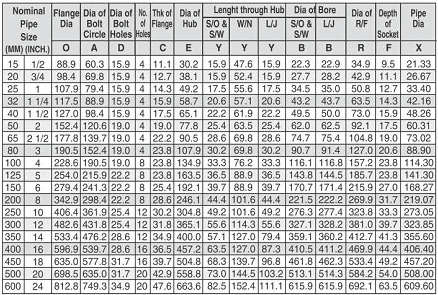

CLASS 300 LBS

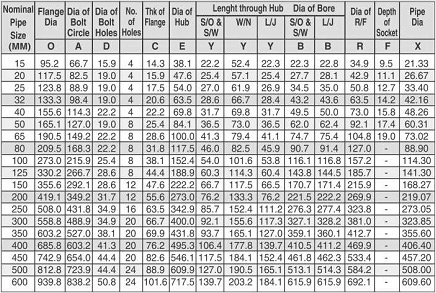

CLASS 600 LBS

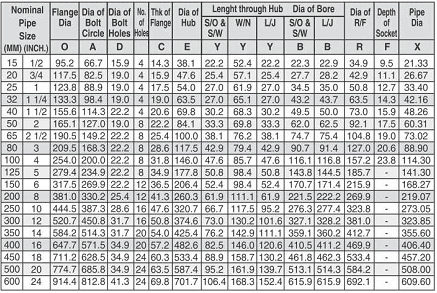

CLASS 900 LBS

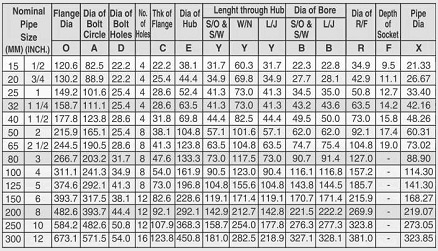

CLASS 1500 LBS

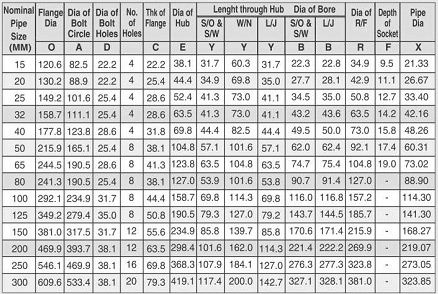

CLASS 2500 LBS
DIMENSIONS AND OTHER SPECIFICATION AS PER CUSTOMER REQUIRMENT ARE AVAILABLE ON REQUEST
|
|
|
|
