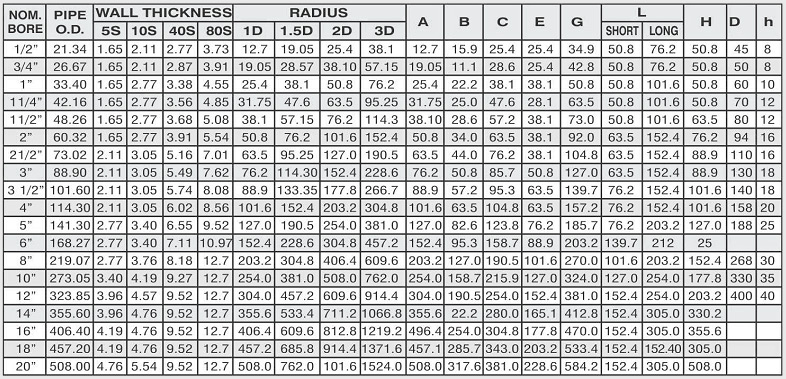

STAINLESS STEEL, PIPE DIMENSION AS PER ASTM & WEIGHT - KG PER MTR. (ANSI B36. 19)

STANDARDS:  All dimensions are in mm and confirm to ABSI B 16.9 and MSS. SP - 43 where applicable - Dimensional tolerance are in accordance with ANSI B 16.9 M.S.S. SP 43 Where applicable.

RADIUS:  Radius of Short Elbow is 1 times nominal pipe diameter, Radius of Long Radius Elbow is 11/2 time nominal pipe diameter.
